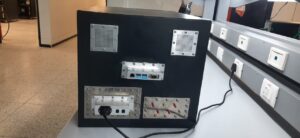

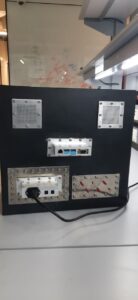

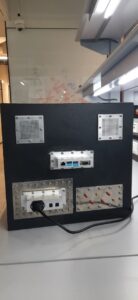

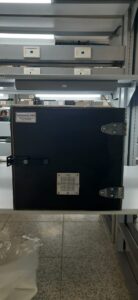

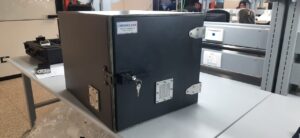

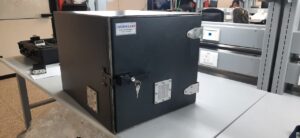

1. RF Shield Enclosures

Exterior Dimensions in MM: 900 H X 900 W X 900 D

Set up will be provided to mount two smaller box on top and Laptop

Manual Single Door – 1 no
High Speed USB 3.0 Interface – 2 nos
Ethernet 1Gbps or 10Gbps       – 1 no
Air Vents                                  –  with cooling  fan
AC Power Inlet                        – 6 amp Filter with 4 Belkin Ports, 2 no’s USB
4 SMA Connectors , 1 Fiber Optic Feed Through

Absorber                                   – 6 sides

Shielding: 200 MHz to 6GHz ,Attenuation Guaranteed level  ≥ 90 dBm As per    IEEE 299

We can customize based on your specifications.

RF Shield Chamber
RF Shield Chamber for Base station and Wireless Devices Hardware testing.
